# Product pickup

<figure><img src="https://3723856256-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGnixyIfIYFWroNtVmZo6%2Fuploads%2Fgit-blob-792b7b350c5c8aaa5d1762e10e941ea6bd080f2f%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

## Overview

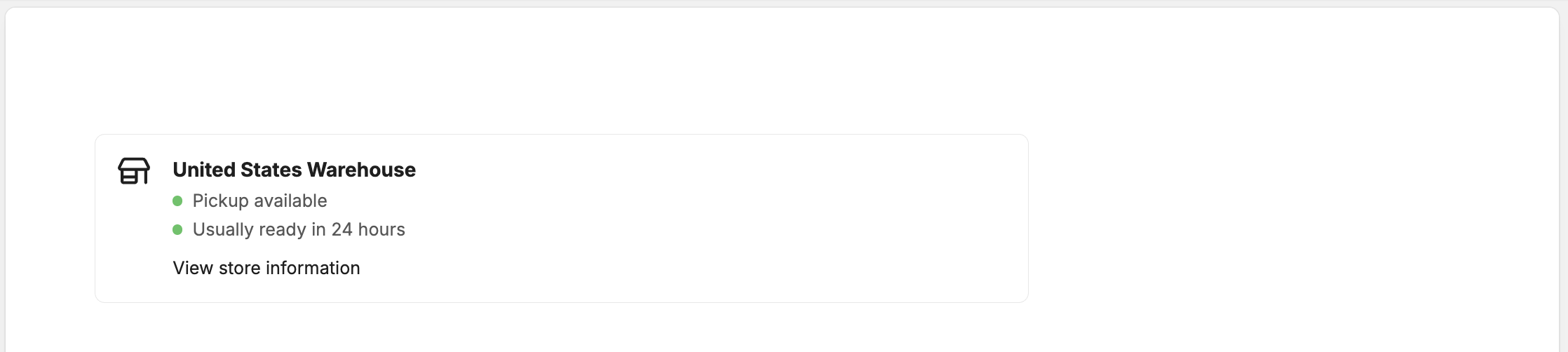

Displays local pickup availability for the selected variant with store location details. Shows availability status, pickup times, and store addresses. Opens a drawer overlay when clicked to display detailed information about all available pickup locations. Content updates dynamically when variant selection changes.

## Common use cases

* Display pickup availability on product pages for stores with local pickup enabled
* Configure internal padding for better visual spacing within the pickup button
* Use appropriate color schemes and borders to match your theme design
* Set visibility options based on whether pickup is primarily a mobile or desktop feature
* Integrate with product variant selection to show real-time pickup availability

## Block settings

### General

| Setting                | Description                 | Options                   |
| ---------------------- | --------------------------- | ------------------------- |
| Show advanced settings | Reveals visibility settings | Checkbox (default: false) |

### Content

| Setting | Description                                           | Options        |
| ------- | ----------------------------------------------------- | -------------- |
| Product | Select the product to display pickup availability for | Product picker |

### Spacing

| Setting                   | Description                                | Options                   |
| ------------------------- | ------------------------------------------ | ------------------------- |
| Enable internal padding   | Adds internal padding to the pickup button | Checkbox (default: true)  |
| Enable horizontal padding | Adds horizontal padding around the block   | Checkbox (default: false) |
| Enable top padding        | Adds top padding around the block          | Checkbox (default: false) |
| Enable bottom padding     | Adds bottom padding around the block       | Checkbox (default: false) |

### Color

| Setting      | Description                             | Options                                                                                                                                                                                    |
| ------------ | --------------------------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ |
| Color scheme | Controls the background and text colors | <p>• Body (default)<br>• Neutral<br>• Accent 1<br>• Accent 2<br>• Accent 3<br>• Shade 1<br>• Shade 2<br>• Shade 3<br>• Primary<br>• Secondary<br>• Tertiary<br>• Blur<br>• Transparent</p> |
| Color border | Controls the border color               | <p>• Body<br>• Subtle (default)<br>• Strong<br>• Primary<br>• Secondary<br>• Tertiary<br>• None</p>                                                                                        |

### Display

| Setting    | Description                        | Options                                                                                                                            |
| ---------- | ---------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------- |
| Visibility | Controls when the block is visible | <p>• All (default)<br>• Mobile only<br>• Desktop only</p><p><br><br>Visible when <strong>Show advanced settings</strong> is on</p> |
